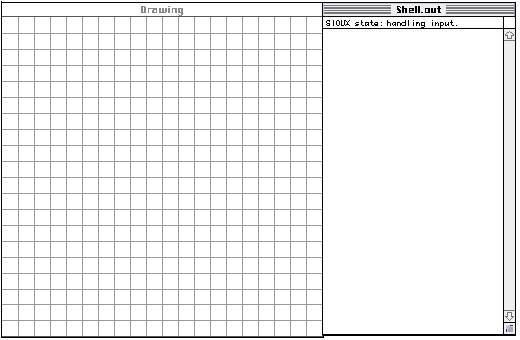

Use the windows on the next page to show the output of the following code:

(The grid boxes are 20 pixels apart.)

// function prototypes int F(int& x, int& y); void G(int N, int& M); void Boxes(int A, int B); // function definitions void main() { // open text and drawing windows BigSquarePair(); //Problem 1----------------------- for (int L = 0; L <= 360; L = L+40) DrawLine(L, 400, L+20, 360); Boxes(10, 20); Boxes(40, 120); //Problem 2----------------------- int x = 5; cout << "Problem 2" << endl; cout << "x = " << x << endl; G(3, x); cout << "x = " << x << endl; x = 3; cout << "x = " << x << endl; G(5, x); cout << "x = " << x << endl; cout << endl; //Problem 3----------------------- { int x = 1, y = 5, z; cout << "Problem 3" << endl; // setw(5) is to make columns line up. cout << setw(5) << "j" << setw(5) << "x" << setw(5) << "y" << setw(5) << "z" << endl; for (int j = 1; j <=5; j++){ z = F(x, y); cout << j << setw(5) << x << setw(5) << y << setw(5) << z << endl; } cout << endl; } //Problem 4----------------------- { int x = 1; int y = 3; cout << "Problem 4" << endl; cout << setw(5) << "j" << setw(5) << "x" << setw(5) << "y" << endl; for (int j = 1; j <=5; j++){ x = F(x, y); cout << j << setw(5) << x << setw(5) << y << endl; } } PressReturn(); } // end main int F(int& x, int& y){ if (x < y){ x = 2*x; return y; } else{ y = 2*y; return x; } } void G(int N, int& M){ int P = 1; for (int k = 1; k <= N; k++) P = M*P; M = P; } void Boxes(int A, int Y){ int W = 400 / A; int X = 0; for (int I = 0; X + W < 400; X += 2*W){ PaintRect(X, Y, X+W, Y+W); W += 20; } }

**Problem 5:** Assume the following declarations:

int score, number; double angle; char response, ch; bool tired, done;Construct a logical expression to represent each of the following conditions:

**Problem 6:** Write the code segment that paints
the 200 x 200 graphics window in a checkerboard pattern of squares
20 x 20. The black and white squares must alternate both vertically
and horizontally (there will be 10 squares in each row and in each
column).

**Problem 7:** Each positive integer can be factored
into a product of prime numbers. Write a function **PrintPrimeDivisors**
that takes an integer n and prints all prime numbers that divide n evenly.
For example, PrintPrimeDivisors(220) will print 2, 5, 11 . If the
number n is negative or zero, the function must print an error message.
The function need not return any value, i.e. its return type can be void. You
may assume that the function * bool IsPrime(int n) * is available.

Extra credit: Write a function **PrintPrimeFactors** that takes an integer
parameter n and prints all prime divisors of n, each divisor as many
times as it appears in the factorization. For example,
PrintPrimeFactors(220) will print 2, 2, 5, 11 .

**Problem 8:** Write a C++ function **Max3** that
takes three integers as arguments and returns the largest one of them.

**Problem 9:** Write a C++ function **GetCircleData** that:

- Takes int arguments x, y, and radius
**by reference** - Prompts the user to input values for x, y, and radius
- Sets x, y, and radius to the values input by user
- Returns true if radius is greater than 0 and false otherwise.

**Problem 10:** Write a function that returns
**through its reference parameters**
both the min and max of the first n items stored in the array A.

void ExtremesOfArray(int& min, int& max, int A[], int n);
