Objectives

See how binary trees are related to arithmetic or algebraic expressions.
Write a program to:

a. construct an expression tree from a prefix expression
b. evaluate a prefix expression from its expression tree
c. recursively draw a binary tree

We usually write the expression 5 + 2 to represent the sum of the numbers 5 and 2. This is called the infix form of the expression. The same sum can be represented by the prefix form + 5 2. One advantage of the prefix form is that parenthesis are never needed.

The infix expression:	is represented in prefix notation by:
(301 + 42) * 56	* + 301 42 56

In this lab, we will restrict the numbers in our expressions to single digits for two reasons:
Digits are single characters. We will not need spaces to separate numbers and operators. We will not need to evaluate integers or doubles in the string.
Digits fit nicely into the drawn nodes.

Overview

Your first task will be to write a Constructor to build a tree from a prefix expression. As the destructor is supplied and writes out the nodes it is deleting, you should be able to tell whether your Constructor is working.

Next, you will write a recursive member function to evaluate an expression tree or give error messages when the tree is incomplete or the string is too long.

Finally, a recursive member function to draw the tree. This is different than the way the drawing of a binary tree was implemented in the Binary Search Tree Lab. This time we do not have node numbers, but pass some geometric information about the drawing region. You will also make your tree-drawing routine give feedback when the tree is incomplete or there is non-digit data at a leaf.

Part 1: Building an Expression Tree

Start by running the application ExpTrees.
Try some simple strings:

Valid Strings:	Invalid Strings:
+34	+
+3*56	+3
+*356	345

Observe what the program does.
Restart the application and try the default string. It is there so that you will have a long, valid prefix expression to test your work with.

Exercise 1: Enter each of the following strings:

• If the string is well-formed, write the expression in infix notation with proper parentheses and give its value.

• otherwise explain what is wrong with the string.



			**-94*+352-84
			+/34-5
			*+26-3+47+59
			++++ab+36+cd+7e

Now, look at the code in ExpTrees.h file.
It starts with two functions that are external to the class Tree.
You will use these functions IsOperator(ch) and IsDigit(ch) to examine the characters in the input string.

Exercise 2:
Next comes the skeleton of the definition of the class Tree and its member struct Node. Read through this file carefully. The destructor and some simple constructors are supplied. Your first coding task is to implement the fourth constructor Tree::Node::Node(char*& s). Put this implementation (and the others in this lab) in the ExpTrees.cp file.

Be careful. This is the hardest part of the lab. Here are some tips:

• Set the current Node's left and right pointers to NULL before you do anything else. This will keep you from accidentally hooking your tree up with unwanted data.

• If the character you are reading is an operator, you should make recursive calls, first to build its left subtree (Node) with the next part of the string, then to build the right subtree (Node) from the remaining string.

• If the current character is a digit, it should become the data in the current node.

• First get your Constructor to work on valid prefix strings, e.g. 3, +34, or the default string.

• Then get it to handle malformed strings, e.g. +, +3, +345.


Exercise 3:
Write the member function Tree::Node::Eval(double& Val).

• To evaluate a digit: double(data) - double('0') will give you the value as a double.

• If a Node has operator data, add, multiply, subtract, or divide the values of the left and right subtrees as indicated by the data.

• First get your Constructor to work on valid prefix strings, e.g. 3, +34, or the default string.

• Then get it to handle malformed strings, e.g. +, +3, +345.


Exercise 4:
Implement the member function

void Tree::Node::Draw(int WindowLeft, int WindowRight , int level)
This is a preorder recursive function. Draw the Node then draw the left and right subtrees. Look at the DrawNode and DrawLink Functions. You don't have to worry about their implementations which are supplied but you do have to understand what they do.

void DrawNode(int WindowLeft, int WindowRight, int level, char data, bool wrong);

Draws a node centered horizontally, half way between WindowLeft and WindowRight. The vertical coordinate is computed from the level. The data is written in the node and the Boolean wrong determine whether the node is drawn in pink or blinked and then drawn in gray.


Make sure to increment level when you make your recursive calls in

void Tree::Node::Draw(int WindowLeft, int WindowRight , int level).

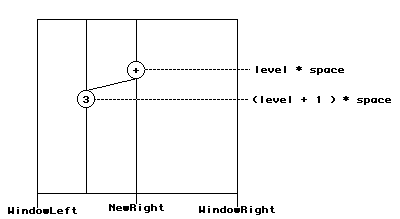

When you make a call to draw the left subtree, the new WindowRight will be the middle of the current window, (WindowLeft + WindowRight)/2.

void DrawLink(int WindowLeft, int WindowRight, int level, bool Left); draws a link (line segment) from the bottom of the node centered at (WindowLeft + WindowRight)/2. to the top of its left child if the BooleanLeft is true and to its right child if Left is false.

Extra Credit:

1. Fix the InOrder traversal so that parentheses are inserted when they are needed. E.g. *+345 = (3+4)*5.

2. Animate the traversals so that nodes change color as the data is written out.
